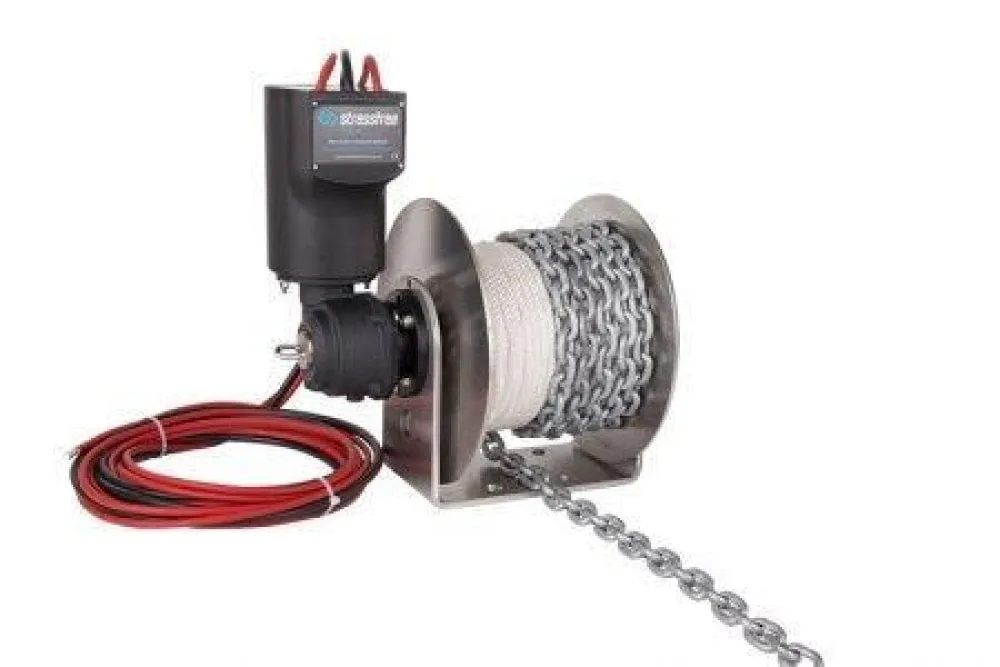

Stressfree Marine Midi 50 Standard Anchor Boat Winch Bundle
The Stressfree Marine Midi 50 Standard Winch Bundle is strong, robust and extremely fast, and includes everything you require to get started. It's suitable for boats up to 13.5ft – 26ft or 4-8m with a maximum boat weight of 2.5 tons.
This bundle includes
- Midi 50 Standard Winch
- Switch panel
- Solenoid
- Mounting bolts
- Backing plate
- 4” anchor roller
- and either the braided or nylon rope/chain kit
Features

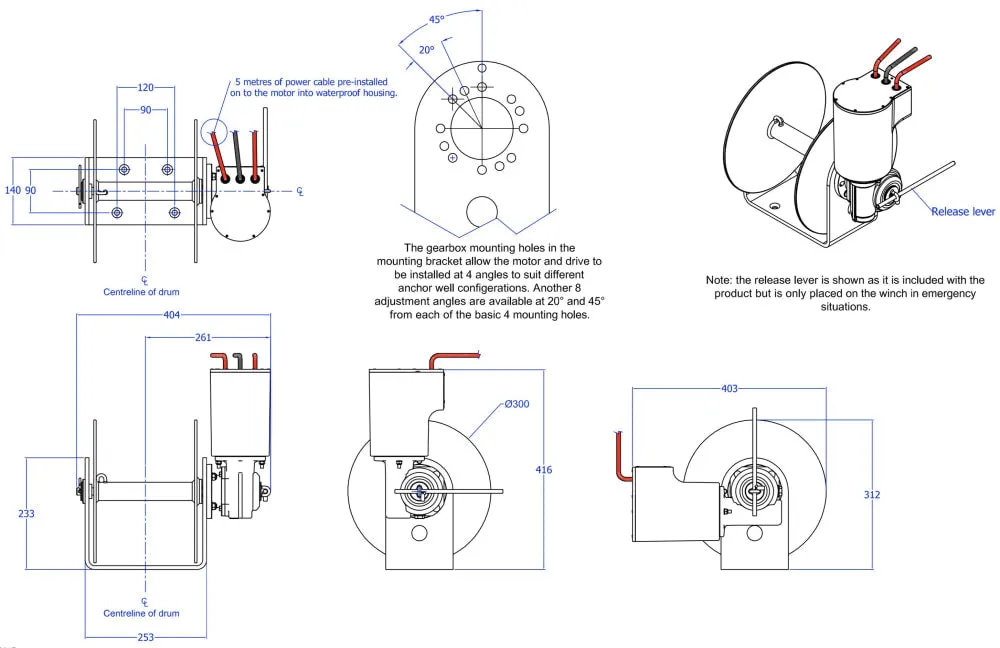

- Adaptable fit and varied mounting options, with the ability to reset the gearbox and motor assembly in 8 different configurations to best suit your anchor well.
- Optional deck mounting.
- Premium quality Italian motor and gearbox.
- Waterproof 135amp circuit breaker with thermal overload cut-out.
- 50 series double anodised gearbox to prevent corrosion.
- 1400watt Motor with Cover, sealed with 5 meters of cable.
- Solid stainless steel drive shaft.
- Grease impregnated acetyl bush for superior performance.
- Optional Pro-series guards upgrade
- Constructed from 316 L grade marine stainless steel.
- All rope and chain is powered on and off the drum.
- Optional waterproof wireless remote.
- 5-year warranty.
STRESSFREE MARINE MIDI 50 STANDARD WINCH SPECIFICATIONS
- Baseplate: 0.31” / 8mm pressed
- Voltage: 12v
- Motor power with High Torque: 1400watt
- Shaft size: 0.98” / 25mm
- Line Speed: Max 243 feet per min. / 74 meters per min.
- Diameter Drum: 11.81” / 300mm
- Gearbox: 50S
- Emergency Manual Override: Yes
- Winch Weight: 61lbs / 28kgs
DRUM CAPACITY OPTIONS
- 110m of 8mm nylon spliced to 8m of 8mm short link chain.
- 200m of 6mm double braid eye spliced to 5m of 8mm nylon spliced to 8 meters of 8mm short link chain.
*Recommend dual batteries with the battery switch set to BOTH.
To view the winch on it's own without the kit, please .
