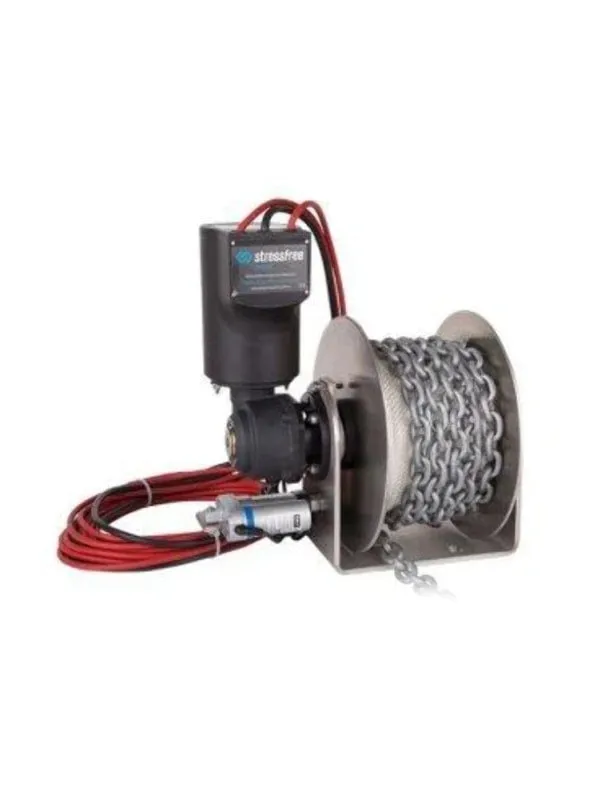

The NG Midi 50 Freefall Boat Anchor Winch Bundle by Stressfree Marine
The Stressfree Marine NG Midi 50 Freefall Winch Bundle is strong, robust and super-fast, and has a patented freefall of up to 5 times faster than competing winches. This bundle and includes everything you require to get started.
This anchor winch is suitable for boats of 13.5ft to 26ft or 4m to 8m in length, and with maximum boat weight of 2.5 tons.
This Bundle Includes
- NG Midi 50 Freefall winch
- Solenoid
- Switch panel
- User manual & DVD
- Mounting hardware
- 4’’ roller
- Backing plate
- and either the braided or nylon rope/chain kit
Features

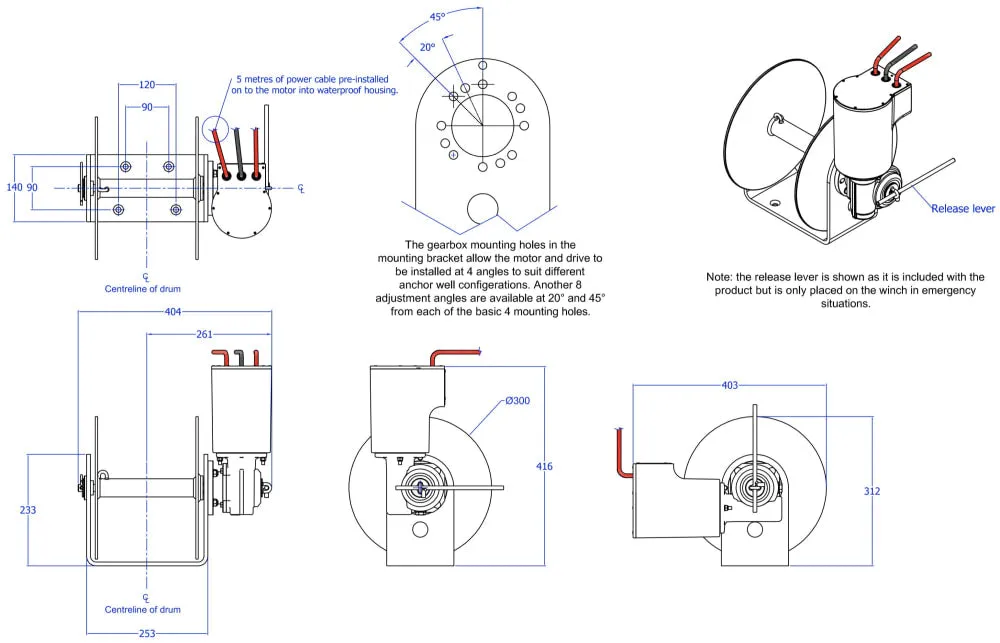

- Adaptable fit and varied mounting options, with the ability to reset the gearbox and motor assembly in 8 different configurations to best suit your anchor well
- Optional deck mounting
- One-touch precision anchoring for fast deployment and minimal drift to make anchoring a breeze
- All rope and chain is spooled on and off the drum
- Premium quality Italian motor and gearbox
- Waterproof 135amp circuit breaker with thermal overload cut-out
- 50 series double anodised gearbox to prevent corrosion
- 1400watt Motor with Cover, sealed with 5 meters of cable
- Solid stainless steel drive shaft
- Grease impregnated acetyl bush for superior performance
- Constructed from 316 L grade marine stainless steel Optional Pro-series guards upgrade
- Optional waterproof wireless remote
- 5-year warranty
Stressfree Marine NG Midi 50 Freefall Winch Specifications
- Baseplate: 0.31” / 8mm pressed
- Voltage: 12v
- Motor power with High Torque: 1400watt
- Shaft size: 0.98” / 25mm
- Line Speed Max: 243 feet per min. / 74 meters per min.
- Diameter Drum: 11.81” / 300mm
- Gearbox: 50S
- Emergency Manual Override: Yes
- Winch Weight: 64lbs / 29kgs
Drum Capacity Options
- 90m of 8mm nylon spliced with 8 meters of short link chain.
- 160m of 6mm double braid eye spliced to 5 meters of 8mm nylon spliced to 8 meters of 8mm short link chain.
*Recommend dual batteries with the battery switch set to BOTH.
